Special barrels, cylinders and liners

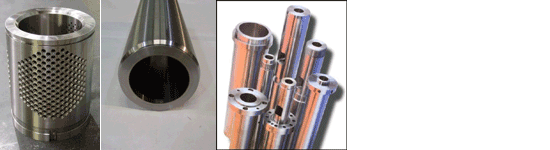

Wexco manufactures custom and special design cylinders and liners used for various food, chemical, rubber, silicon, mineral and pharmaceutical applications. Weather the application includes pumping, melting, heating, cooling, crystallization, reaction control, extrusion, injection, blending or mixing we have a wear resistant cylinder to meet the process demands. Bring Wexco your wear challenge!

Petroleum chemical- well drilling and pump cylinders
Food processing and extrusion
Thermoset injection molding
Silicone injection molding and extrusion
Rubber processing- injection & extrusion
Magnesium and metal injection molding
Catalyst extrusion
  • Alloys for the full range of process environments.
  • Wear solutions from complex to general purpose applications.
  • Maximum component life and optimum production.

Wexco Inlay

Wear Environments

555

Medium corrosion and moderate abrasion.

BO22

Severe corrosion and medium abrasion - Fluoropolymer and processes containing halogens.

CPM10V

Moderate to heavy abrasion in bore diameter sizes 50MM and below.

666

General purpose – moderate abrasion and mild corrosion.

Dura 686XL
(patent pending)

Heavy duty - general purpose, high screw speed, abrasion and mild corrosion.

777 - Durocast

Heavy duty abrasion and medium corrosion in glass filled resin applications.

Durocast premium

Heavy duty abrasion and medium corrosion with a. 010" or less 5 year wear guarantee.

Wexco 555, B022 and 777 alloys are recognized by the FDA as suitable for food, drug and medical process applications.

Special design cylinders, bimetallic cylinder liners, food extrusion, chemical pump cylinders, bimetal liners

Contact Wexco for more information on special design cylinders, bimetallic cylinder liners, food extrusion, chemical pump cylinders, bimetal liners


Wexco Corporation - 1015 Dillard Drive, Lynchburg, VA 24502 - (800) 999-3926
